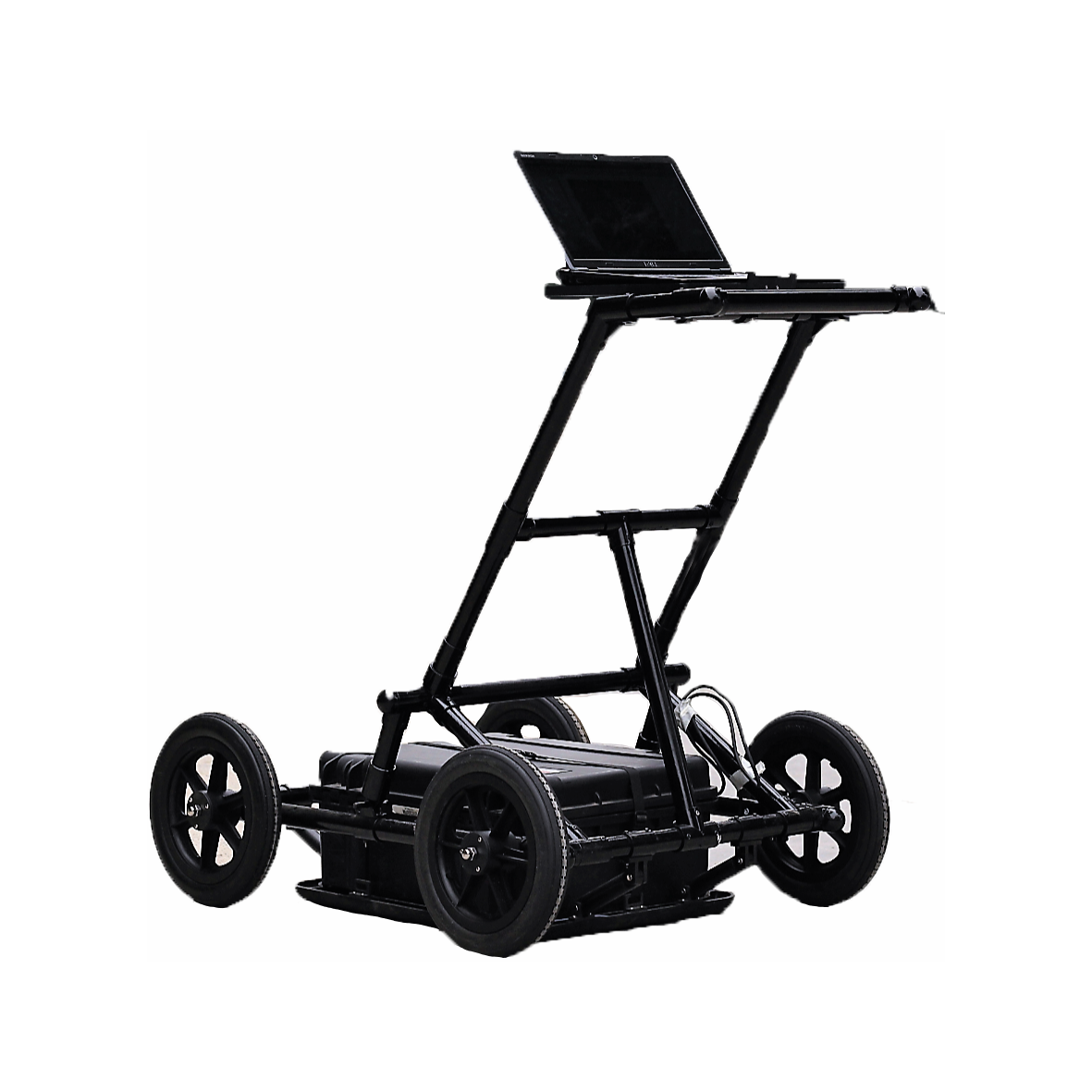

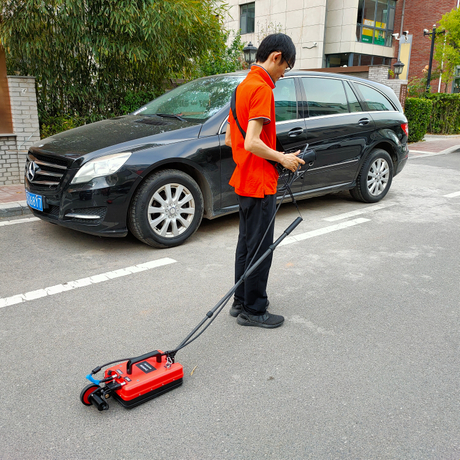

TBT-GPR
TBTSCIETECH
| Availability: | |
|---|---|
Application:
Archaeology mobile Pipe Locator Ground Penetrating Radar is used to detect or identify the information of metal or non-metal targets in a certain depth underground for such as engineering surveys, municipal pipelines, roads bridges and tunnel inspections.This system is ideal for uncovering inconsistencies that occur during the paving process, including poor uniformity and significant variations in density.
1.Municipal pipelines: identify the distribution of underground metal or non-metal pipelines in the process of urban construction.
2.Road and bridge: make geological body survey for road or bridge siting process. The geological radar can detect all kinds of pavements showing the thickness of each layer but without layer material details, the Radar distinguish the interface of different layers according to the dielectric constant of each layer of materials.
3.Tunnel inspection: used for tunnel forecasting, tunnel construction quality inspection, etc.
4.Engineering survey: identify the information of bad underground geological bodies such as karst, collapse, broken zone, etc.
Application Recommendation:
Antenna type | Antenna frequency | Up to depth | Application |
Monomer Shielding antenna | 1GHz | 0.5~0.8m | Defect detection of concrete, steel bar and bridge |
400MHz | 1~5 m | Engineering and tunnel lining inspection, retaining wall defect detection | |
200MHz | 1-10m | Shallow layer, engineering, municipal pipelines, environmental exploration | |
Non-shielded antennas | 100MHz | 0~30m | Tunnel Advance Forecast |
Discover our Archaeology Mobile Pipe Locator Ground Penetrating Radar, engineered for precise subsurface exploration. Ideal for archaeology and utility locating, this advanced radar offers unparalleled accuracy and mobility, enhancing fieldwork efficiency.
The Archaeology Mobile Pipe Locator Ground Penetrating Radar (GPR) is an advanced tool for subsurface investigations. Its mobile design and high-resolution imaging make it ideal for archaeological surveys and utility mapping. This GPR provides accurate and reliable data, ensuring effective exploration and analysis.
High-Resolution Imaging: Delivers clear and detailed subsurface images.
Mobile Design: Easy to transport and operate in various field conditions.
Versatile Applications: Suitable for both archaeological surveys and utility locating.
User-Friendly Interface: Intuitive controls for efficient operation.
Overview of the Archaeology Mobile Pipe Locator Ground Penetrating Radar
The Archaeology Mobile Pipe Locator Ground Penetrating Radar is a state-of-the-art tool designed for detailed subsurface exploration. This mobile GPR system is tailored for both archaeological and utility locating applications, providing high-resolution images and reliable data.
Advanced Imaging and Versatility
High-Resolution Imaging: Equipped with advanced radar technology, this GPR offers clear and detailed images of subsurface structures. This high resolution is essential for accurate archaeological mapping and utility detection.
Mobile and User-Friendly: The mobile design ensures ease of transportation and operation, making it suitable for various field conditions. The user-friendly interface allows operators to quickly set up and conduct surveys, improving overall efficiency.
Applications in Archaeology and Utility Locating
Archaeological Surveys: Ideal for identifying and mapping archaeological sites, this GPR helps uncover buried artifacts and structures without invasive digging. Its high-resolution imaging aids in detailed documentation and analysis of findings.
Utility Locating: The GPR is equally effective for locating underground utilities, such as pipes and cables. It provides precise data on the location and depth of utilities, helping to avoid damage during excavation and construction projects.
Performance and Reliability
The Archaeology Mobile Pipe Locator Ground Penetrating Radar is built to deliver consistent performance in various environments. Its robust construction and advanced technology ensure reliable results, making it a valuable tool for professionals in archaeology and utility locating. The system's accuracy and mobility enhance fieldwork efficiency, allowing for comprehensive subsurface exploration.
Q: What is the depth range of this GPR?A: The depth range varies depending on soil conditions and the target's size, but it generally ranges from a few centimeters to several meters.
Q: Can this GPR detect both metallic and non-metallic objects?A: Yes, the GPR can detect a wide range of materials, including metallic and non-metallic objects.
Q: Is the GPR system difficult to operate?A: No, the GPR system is designed with an intuitive interface, making it user-friendly and easy to operate even for those new to the technology.
Application:
Archaeology mobile Pipe Locator Ground Penetrating Radar is used to detect or identify the information of metal or non-metal targets in a certain depth underground for such as engineering surveys, municipal pipelines, roads bridges and tunnel inspections.This system is ideal for uncovering inconsistencies that occur during the paving process, including poor uniformity and significant variations in density.
1.Municipal pipelines: identify the distribution of underground metal or non-metal pipelines in the process of urban construction.
2.Road and bridge: make geological body survey for road or bridge siting process. The geological radar can detect all kinds of pavements showing the thickness of each layer but without layer material details, the Radar distinguish the interface of different layers according to the dielectric constant of each layer of materials.
3.Tunnel inspection: used for tunnel forecasting, tunnel construction quality inspection, etc.
4.Engineering survey: identify the information of bad underground geological bodies such as karst, collapse, broken zone, etc.
Application Recommendation:
Antenna type | Antenna frequency | Up to depth | Application |
Monomer Shielding antenna | 1GHz | 0.5~0.8m | Defect detection of concrete, steel bar and bridge |
400MHz | 1~5 m | Engineering and tunnel lining inspection, retaining wall defect detection | |
200MHz | 1-10m | Shallow layer, engineering, municipal pipelines, environmental exploration | |
Non-shielded antennas | 100MHz | 0~30m | Tunnel Advance Forecast |
Discover our Archaeology Mobile Pipe Locator Ground Penetrating Radar, engineered for precise subsurface exploration. Ideal for archaeology and utility locating, this advanced radar offers unparalleled accuracy and mobility, enhancing fieldwork efficiency.
The Archaeology Mobile Pipe Locator Ground Penetrating Radar (GPR) is an advanced tool for subsurface investigations. Its mobile design and high-resolution imaging make it ideal for archaeological surveys and utility mapping. This GPR provides accurate and reliable data, ensuring effective exploration and analysis.
High-Resolution Imaging: Delivers clear and detailed subsurface images.
Mobile Design: Easy to transport and operate in various field conditions.
Versatile Applications: Suitable for both archaeological surveys and utility locating.
User-Friendly Interface: Intuitive controls for efficient operation.
Overview of the Archaeology Mobile Pipe Locator Ground Penetrating Radar
The Archaeology Mobile Pipe Locator Ground Penetrating Radar is a state-of-the-art tool designed for detailed subsurface exploration. This mobile GPR system is tailored for both archaeological and utility locating applications, providing high-resolution images and reliable data.
Advanced Imaging and Versatility
High-Resolution Imaging: Equipped with advanced radar technology, this GPR offers clear and detailed images of subsurface structures. This high resolution is essential for accurate archaeological mapping and utility detection.
Mobile and User-Friendly: The mobile design ensures ease of transportation and operation, making it suitable for various field conditions. The user-friendly interface allows operators to quickly set up and conduct surveys, improving overall efficiency.
Applications in Archaeology and Utility Locating
Archaeological Surveys: Ideal for identifying and mapping archaeological sites, this GPR helps uncover buried artifacts and structures without invasive digging. Its high-resolution imaging aids in detailed documentation and analysis of findings.
Utility Locating: The GPR is equally effective for locating underground utilities, such as pipes and cables. It provides precise data on the location and depth of utilities, helping to avoid damage during excavation and construction projects.
Performance and Reliability
The Archaeology Mobile Pipe Locator Ground Penetrating Radar is built to deliver consistent performance in various environments. Its robust construction and advanced technology ensure reliable results, making it a valuable tool for professionals in archaeology and utility locating. The system's accuracy and mobility enhance fieldwork efficiency, allowing for comprehensive subsurface exploration.
Q: What is the depth range of this GPR?A: The depth range varies depending on soil conditions and the target's size, but it generally ranges from a few centimeters to several meters.
Q: Can this GPR detect both metallic and non-metallic objects?A: Yes, the GPR can detect a wide range of materials, including metallic and non-metallic objects.
Q: Is the GPR system difficult to operate?A: No, the GPR system is designed with an intuitive interface, making it user-friendly and easy to operate even for those new to the technology.
Performance Parameters:
Model | TBT-GPR Series Geological Radar |
Antenna frequency | 100MHz/200MHz/400MHz/1GHz/2GHz Optional |
Sampling frequency | 0.2-100Ghz Adjustable |
Time Window Range | 1ns~200000s, Continuous adjustable |
Sampling points | 512~8192 sample Point/scan, optional |
Scan rate | 6~480 Scan/sec, optional |
A/D conversion | 24bit |
Continuous working hours | ≥ 8 hours |
Power consumption of whole machine | < 6 in |
Minimum sampling interval | ＜2ps |
Measuring mode | Measurement by point, distance trigger, continuous measurement three kinds of measuring methods |
Display mode | Pseudo color, stacked waveform or grayscale |
Operating temperature | -30℃～+70℃ |
Operating voltage | 11-15V DC |
Wireless data transmission distance | Greater than 50 M |
Wired Communications | Ethernet, 100Mbps |
Weight | ≤ 5kg |
Relative Service:
Provides multi-parameter verification of spectrum induced polarization for detection abnormality at a certain depth.
Performance Parameters:
Model | TBT-GPR Series Geological Radar |
Antenna frequency | 100MHz/200MHz/400MHz/1GHz/2GHz Optional |
Sampling frequency | 0.2-100Ghz Adjustable |
Time Window Range | 1ns~200000s, Continuous adjustable |
Sampling points | 512~8192 sample Point/scan, optional |
Scan rate | 6~480 Scan/sec, optional |
A/D conversion | 24bit |
Continuous working hours | ≥ 8 hours |
Power consumption of whole machine | < 6 in |
Minimum sampling interval | ＜2ps |
Measuring mode | Measurement by point, distance trigger, continuous measurement three kinds of measuring methods |
Display mode | Pseudo color, stacked waveform or grayscale |
Operating temperature | -30℃～+70℃ |
Operating voltage | 11-15V DC |
Wireless data transmission distance | Greater than 50 M |
Wired Communications | Ethernet, 100Mbps |
Weight | ≤ 5kg |
Relative Service:
Provides multi-parameter verification of spectrum induced polarization for detection abnormality at a certain depth.
Main features:
1, Optional multi-band antennas allows wide application range. This Radar acquisition system can be formed as diversified frequency center through multiple groups of transmitting & receiving antennas equipped in one system, it can acquisition up to 8 groups of frequencies at the same time. For example, a dual-frequency pipeline detection radar can be equipped with two antennas of 400M+200M, which can obtain high-resolution shallow information and low-resolution deep information in one acquisition.
2, The integrated all-in-one compact design, light weight 23kgs (50lbs) and durable, weatherproof materials offers a comfortable & easy-to-steer Radar which can be operated in almost any terrain, can be assembled on site in 2 minutes and fast dismantled for easy storage& transportation.
3, The modular design allows easy to service and to be repaired.
4, Outstanding location performance with good resolution up to 1mm, real-time data collection and display . The powerful DSP core allows sub-surface map real-time display on high-contrast LCD, integrated digital color and gain enhancements maximize the location quality. Advanced digital filtering eliminates unwanted signals and provide greater accuracy.
5, Unique Location Mode is activated simply by reversing the cart, which provides an accurate snapshot of underground conditions with a cursor indicates the depth and location of buried utility.
6, Operating is simple, LCD with keypad and menu easy for user to access the DSP core. One-touch image recording helps easy data storage, images can be saved to flash cards and copied to a PC through third-party card readers.
7, The flashcard interface allows the Radar firmware being upgraded once it available.
8, Built-in super-capacity battery grants long battery life.
Main features:
1, Optional multi-band antennas allows wide application range. This Radar acquisition system can be formed as diversified frequency center through multiple groups of transmitting & receiving antennas equipped in one system, it can acquisition up to 8 groups of frequencies at the same time. For example, a dual-frequency pipeline detection radar can be equipped with two antennas of 400M+200M, which can obtain high-resolution shallow information and low-resolution deep information in one acquisition.
2, The integrated all-in-one compact design, light weight 23kgs (50lbs) and durable, weatherproof materials offers a comfortable & easy-to-steer Radar which can be operated in almost any terrain, can be assembled on site in 2 minutes and fast dismantled for easy storage& transportation.
3, The modular design allows easy to service and to be repaired.
4, Outstanding location performance with good resolution up to 1mm, real-time data collection and display . The powerful DSP core allows sub-surface map real-time display on high-contrast LCD, integrated digital color and gain enhancements maximize the location quality. Advanced digital filtering eliminates unwanted signals and provide greater accuracy.
5, Unique Location Mode is activated simply by reversing the cart, which provides an accurate snapshot of underground conditions with a cursor indicates the depth and location of buried utility.
6, Operating is simple, LCD with keypad and menu easy for user to access the DSP core. One-touch image recording helps easy data storage, images can be saved to flash cards and copied to a PC through third-party card readers.
7, The flashcard interface allows the Radar firmware being upgraded once it available.
8, Built-in super-capacity battery grants long battery life.
Software Applications:
1, Display mode: Real-time color rendering, color/Gray-scale row scan,Variable Area/Waveform display, can be used in linear scanning mode 256A color source to indicate the amplitude and polarity of the signal.
2, The Radar packages enriches the application of system, in addition to equipped with a dedicated radar data processing software, user can choose software module to perform data processing on PC.
The Modules available as:
2.1 Highway surface layer automatic tracking software: specially used for highway detection, removal of interference automatically.
2.2 Highway structure can be stratified and automatically tracked to show the pile number, layer thickness and thickness deviation in spreadsheet.
3, Structure Scan Toolkit: 3-dimensional depth profile, reinforcement mesh perspective, pipeline positioning, building holes, cracks showing.
4, Structure analysis software: Steel bar distribution depth positioning display, municipal pipeline distribution positioning.
5, Bridge structure and rust analysis software: Bridge steel bar distribution and corrosion judgment analysis software.
Software Applications:
1, Display mode: Real-time color rendering, color/Gray-scale row scan,Variable Area/Waveform display, can be used in linear scanning mode 256A color source to indicate the amplitude and polarity of the signal.
2, The Radar packages enriches the application of system, in addition to equipped with a dedicated radar data processing software, user can choose software module to perform data processing on PC.
The Modules available as:
2.1 Highway surface layer automatic tracking software: specially used for highway detection, removal of interference automatically.
2.2 Highway structure can be stratified and automatically tracked to show the pile number, layer thickness and thickness deviation in spreadsheet.
3, Structure Scan Toolkit: 3-dimensional depth profile, reinforcement mesh perspective, pipeline positioning, building holes, cracks showing.
4, Structure analysis software: Steel bar distribution depth positioning display, municipal pipeline distribution positioning.
5, Bridge structure and rust analysis software: Bridge steel bar distribution and corrosion judgment analysis software.
Configuration: (Standard includes Antenna and EXCLUDES computer)
Item | Qtty | Unit | Description | |
1 | Radar integrated with antenna | 1 | unit | including packing box, transceiver components |
2 | real-time acquisition and analysis software | 1 | set | without lock |
3 | rechargeable battery | 1 | set | can work continuously for more than 8 hours |
4 | charger | 1 | set | can charge fast and charge slowly |
5 | product manual | 1 | copy | |
6 | Professional data processing software | 1 | set | with electronic dog |
7 | measuring wheels | 1 | set | included in the quotation |
8 | professional cart | 1 | pc | included in the quotation |
9 | Optional computer | EXCLUDED in quotation |
Configuration: (Standard includes Antenna and EXCLUDES computer)
Item | Qtty | Unit | Description | |
1 | Radar integrated with antenna | 1 | unit | including packing box, transceiver components |
2 | real-time acquisition and analysis software | 1 | set | without lock |
3 | rechargeable battery | 1 | set | can work continuously for more than 8 hours |
4 | charger | 1 | set | can charge fast and charge slowly |
5 | product manual | 1 | copy | |
6 | Professional data processing software | 1 | set | with electronic dog |
7 | measuring wheels | 1 | set | included in the quotation |
8 | professional cart | 1 | pc | included in the quotation |
9 | Optional computer | EXCLUDED in quotation |
