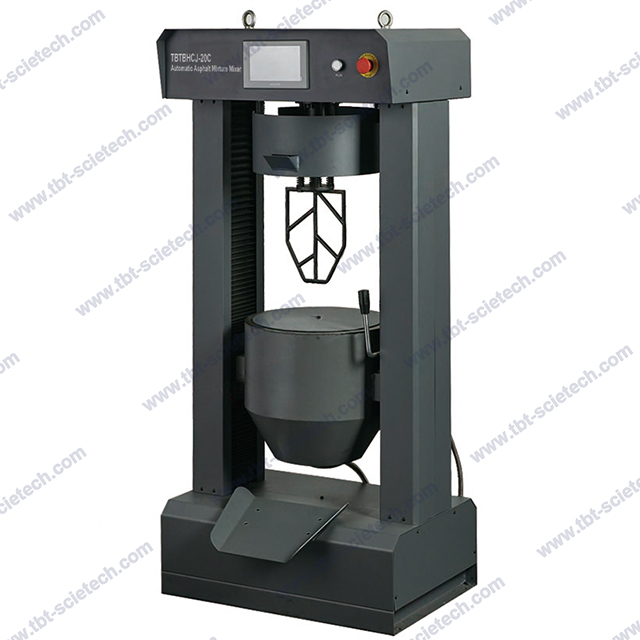

TBTBHCJ-20C
TBTSCIETECH
| Availability: | |
|---|---|
TBTBHCJ-20C adopts vertical mixing design, rigid structure and touch screen controller.
Its 20liter large capacity mixing chamber can be used to produce samples for performing tests of Marshall stability, gyratory compaction, prismatic asphalt specimen compaction via shear box compactor.
It is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce mechanical degradation of the aggregates.
TBTBHCJ-20C adopts vertical mixing design, rigid structure and touch screen controller.
Its 20liter large capacity mixing chamber can be used to produce samples for performing tests of Marshall stability, gyratory compaction, prismatic asphalt specimen compaction via shear box compactor.
It is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce mechanical degradation of the aggregates.
1. Touch screen controller for easy operation;
2. The screen can display the temperature and time in real time;
3. The mixing temperature can be set from room temperature to 250℃, which meets the temperature requirements of cold/warm/hot mixing.
1. Touch screen controller for easy operation;
2. The screen can display the temperature and time in real time;
3. The mixing temperature can be set from room temperature to 250℃, which meets the temperature requirements of cold/warm/hot mixing.
Mixing volume | 20 liters |
Speed of mixing paddle | Revolution 47 times/min; rotation 76 times/min |
Temperature control range | Room temperature~250℃ |
Temperature control accuracy | ±3℃ |
Time control range | 0~9999 seconds |
Time control accuracy | ±1 second |
Mixing motor | 380V, 50Hz, 750W |
Dimension | 710x460x1500mm |
Weight of the whole machine | 210kg |
Mixing volume | 20 liters |
Speed of mixing paddle | Revolution 47 times/min; rotation 76 times/min |
Temperature control range | Room temperature~250℃ |
Temperature control accuracy | ±3℃ |
Time control range | 0~9999 seconds |
Time control accuracy | ±1 second |
Mixing motor | 380V, 50Hz, 750W |
Dimension | 710x460x1500mm |
Weight of the whole machine | 210kg |
