TBTPAV-II
TBTSCIETECH
TBTPAV-II
| Availability: | |
|---|---|

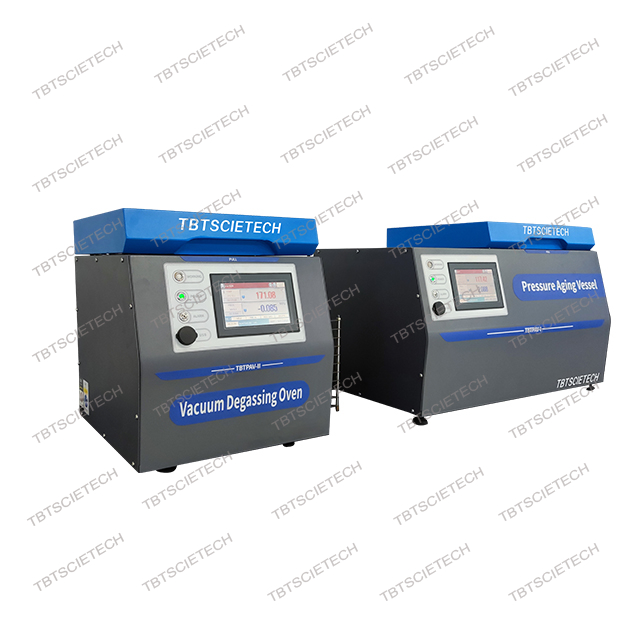

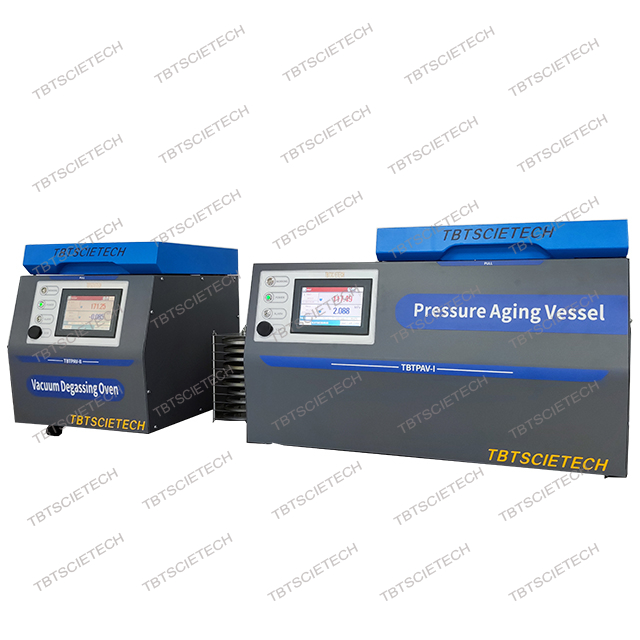

TBTPAV-II Bitumen PAV System consists of TBTPAV-I Pressure Aging Vessel(PAV) & TBTPAV-II Vacuum Degassing Oven(VDO).
TBTPAV-I Pressure Aging Vessel(PAV) simulates the accelerated aging process of asphalt binders in service on road by high pressure and temperature.

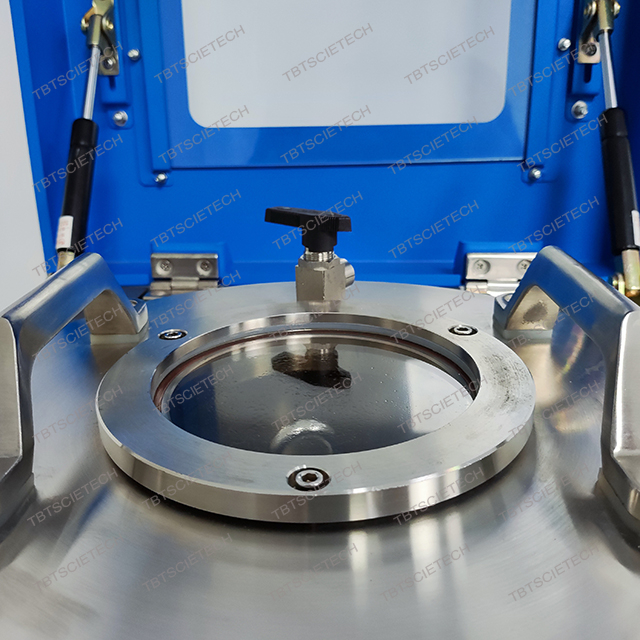

TBTPAV-II Vacuum Degassing Oven(VDO) removes air bubbles created during the in-service oxidative ageing of asphalt binder.
The method is first aged using T 240(RTFOT, TBT-0610W is suitable model). A specified thickness of residue, from the RTFOT, is then placed in stainless steel pans and aged at the specified aging temperature for 20h in a vessel pressurized with air to 2.10 MPa. The aging temperature is selected according to the grade of the asphalt binder. At the completion of the PAV process, the asphalt binder residue is then vacuum degassed.
TBTPAV-II system is certified by Regulations of Safety Supervision of ISO 9001 quality management system.
Technical Specification
TBTPAV-I Pressure Aging Vessel
Power supply | 220V, 50Hz |
Rated power | 1100W |
Pressure vessel working volume | 13L |
Working medium | Air |
Rated working temperature | 80~115℃ |
Rated working pressure | 2.1Mpa |
Design pressure | 2.2Mpa |
Hydraulic test pressure | 2.75Mpa |
Open pressure of safety valve | 2.5Mpa |
Bursting pressure of safety bursting disc | 2.6Mpa |
Pressure controller accuracy | ±0.01Mpa |
Temperature controller accuracy | ±0.1℃ |
Time segment | 64x1080min |
Control method | Touch screen or remote control |
Size | 850x550x550mm |
TBTPAV-II Vacuum Degassing Oven
Power supply | 220V, 50Hz |
Rated power | 900W |
Working volume | 13L |
Working medium | Air |
Rated working temperature | 170℃ |
Rated working pressure | Absolute pressure 15Kpa |
Temperature control accuracy | ±2℃(standard requested±5℃) |
Control method | Touch screen or remote control |
Size | 8450x510x530mm |
TBTPAV-II Bitumen PAV System consists of TBTPAV-I Pressure Aging Vessel(PAV) & TBTPAV-II Vacuum Degassing Oven(VDO).
TBTPAV-I Pressure Aging Vessel(PAV) simulates the accelerated aging process of asphalt binders in service on road by high pressure and temperature.
TBTPAV-II Vacuum Degassing Oven(VDO) removes air bubbles created during the in-service oxidative ageing of asphalt binder.
The method is first aged using T 240(RTFOT, TBT-0610W is suitable model). A specified thickness of residue, from the RTFOT, is then placed in stainless steel pans and aged at the specified aging temperature for 20h in a vessel pressurized with air to 2.10 MPa. The aging temperature is selected according to the grade of the asphalt binder. At the completion of the PAV process, the asphalt binder residue is then vacuum degassed.
TBTPAV-II system is certified by Regulations of Safety Supervision of ISO 9001 quality management system.
Technical Specification
TBTPAV-I Pressure Aging Vessel
Power supply | 220V, 50Hz |
Rated power | 1100W |
Pressure vessel working volume | 13L |
Working medium | Air |
Rated working temperature | 80~115℃ |
Rated working pressure | 2.1Mpa |
Design pressure | 2.2Mpa |
Hydraulic test pressure | 2.75Mpa |
Open pressure of safety valve | 2.5Mpa |
Bursting pressure of safety bursting disc | 2.6Mpa |
Pressure controller accuracy | ±0.01Mpa |
Temperature controller accuracy | ±0.1℃ |
Time segment | 64x1080min |
Control method | Touch screen or remote control |
Size | 850x550x550mm |
TBTPAV-II Vacuum Degassing Oven
Power supply | 220V, 50Hz |
Rated power | 900W |
Working volume | 13L |
Working medium | Air |
Rated working temperature | 170℃ |
Rated working pressure | Absolute pressure 15Kpa |
Temperature control accuracy | ±2℃(standard requested±5℃) |
Control method | Touch screen or remote control |
Size | 8450x510x530mm |

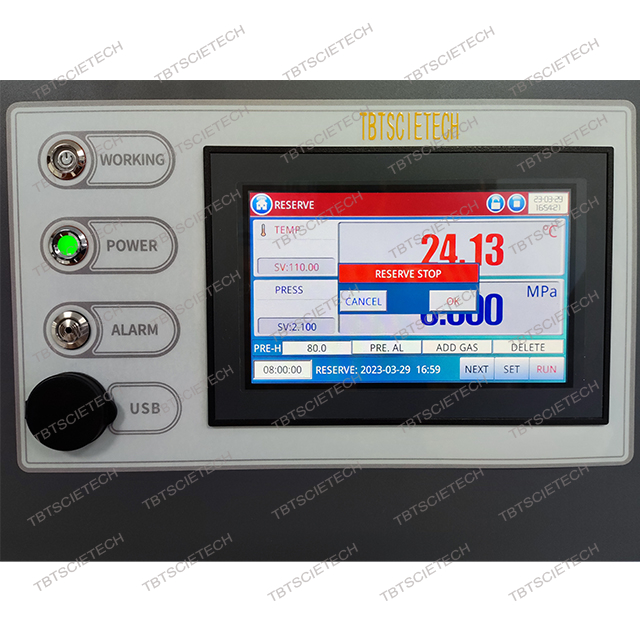

1. Touch screen controller can display temperature and pressure in real time;
2. Delay start preheating function;
3. Display and calculate temperature error time according to standard;
4. Support remote control via computer;
5. With USB communication port, data can be exported easily;
6. PAV can run the aging process up to 99 hours;
7. High accuracy temperature control;
8. Automatic pressure release and prevent overshoot function;
9. The pressure chamber Max. pressure is designed 8 times based on rated work pressure.
1. Touch screen controller can display temperature and pressure in real time;
2. Delay start preheating function;
3. Display and calculate temperature error time according to standard;
4. Support remote control via computer;
5. With USB communication port, data can be exported easily;
6. PAV can run the aging process up to 99 hours;
7. High accuracy temperature control;
8. Automatic pressure release and prevent overshoot function;
9. The pressure chamber Max. pressure is designed 8 times based on rated work pressure.
