TBT-3536-1
TBTSCIETECH
| Availability: | |
|---|---|

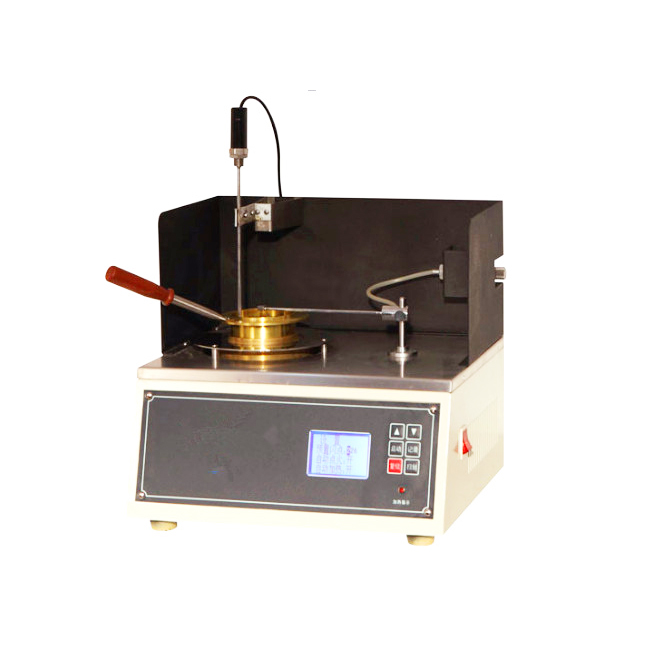

This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
1. It adopts technology of single chip microcomputer and LCD screen. English man-machine interface.The heating device is continuously adjustable.Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
Accurate heating rate.The instrument can do test automatically.
5. Operator only need to observe the flash point appearing. The cost performance is high.
1. It adopts technology of single chip microcomputer and LCD screen. English man-machine interface.The heating device is continuously adjustable.Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
Accurate heating rate.The instrument can do test automatically.
5. Operator only need to observe the flash point appearing. The cost performance is high.
1. Power supply | AC（220±10%）V, 50Hz |
2. Flash point determination | Range： Ambient to 400℃ Repeatability≤8℃ Reproducibility：≤17℃ Accuracy：0.1℃ |
3. Heating rate | Correspond with GB/T3536 and ASTM D92 |
4. Igniting mode | Electric ignition, Gas flame diameter: 3.2mm～4.8mm |
5. Ambient temperature | (10～40)℃ |
6. Relative humidity | ≤80% |
7.Maximum power consumption | 500W |
8. Dimension | 520mm×380mm×310mm |
1. Power supply | AC（220±10%）V, 50Hz |
2. Flash point determination | Range： Ambient to 400℃ Repeatability≤8℃ Reproducibility：≤17℃ Accuracy：0.1℃ |
3. Heating rate | Correspond with GB/T3536 and ASTM D92 |
4. Igniting mode | Electric ignition, Gas flame diameter: 3.2mm～4.8mm |
5. Ambient temperature | (10～40)℃ |
6. Relative humidity | ≤80% |
7.Maximum power consumption | 500W |
8. Dimension | 520mm×380mm×310mm |
No. | Item | Unit | Qty |
1 | Oil cup | Piece | 1 |
2 | Power supply wire (250V 6A) | Piece | 1 |
3 | Printer paper | Roll | 1 |
4 | Igniter | Piece | 1 |
No. | Item | Unit | Qty |
1 | Oil cup | Piece | 1 |
2 | Power supply wire (250V 6A) | Piece | 1 |
3 | Printer paper | Roll | 1 |
4 | Igniter | Piece | 1 |
