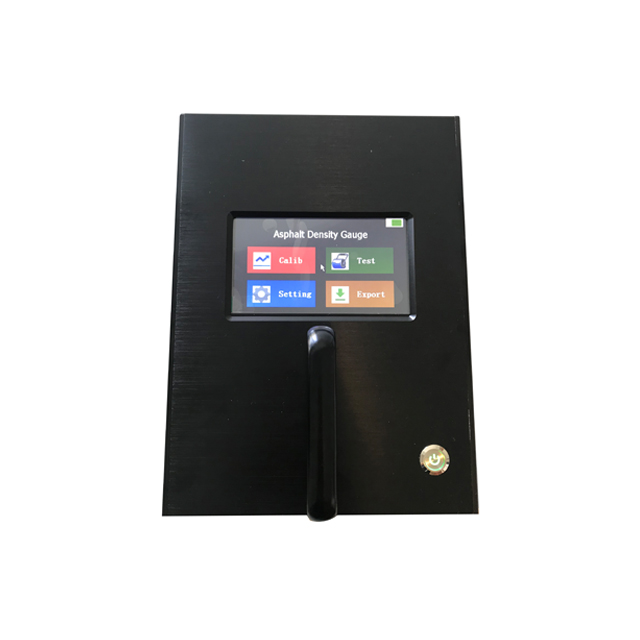

High Resolution Asphalt Non-Nuclear Electrical Density Gauge is a portable non-destructive pavement quality indicator.It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers ofpavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
High Resolution Asphalt Non-Nuclear Electrical Density Gauge is a portable non-destructive pavement quality indicator.It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers ofpavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
1.Fast and accurate material density and compaction test.
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations.
3.You can read the data accurately in three seconds.
4.Touch screen operation, light and easy operation.
5. Measuring Density in Universal Units (g./cm³ or kg/m³).
6. Higher precision and better stability.
7.Using U disc to copy the data directly
1.Fast and accurate material density and compaction test.
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations.
3.You can read the data accurately in three seconds.
4.Touch screen operation, light and easy operation.
5. Measuring Density in Universal Units (g./cm³ or kg/m³).
6. Higher precision and better stability.
7.Using U disc to copy the data directly
Calibration
| Operating temp. | 0℃~70℃ |
| Measuring depth | 2mm ~12mm |
| Display content | density/compaction/porosity/temperature and humidity |
| Main unit dimension | around 230*170*60mm |
| Displayer | With 5.1inch touch screen |
| Power supply | 12V/2.6Ah Li-battery |
| Detection area | Diameter 15cm |
| Data | 10,000 data can be stored in internal ROM |
| Built-in detection and calibration function | accurate results obtained under various temperature and humidity conditions. |
| Measuring time | ≤3 seconds |
| No need to do coring calibration, can test directly | |
| Interface | USB,U disc can transmit data directly or upgrade internal software |
Calibration
| Operating temp. | 0℃~70℃ |
| Measuring depth | 2mm ~12mm |
| Display content | density/compaction/porosity/temperature and humidity |
| Main unit dimension | around 230*170*60mm |
| Displayer | With 5.1inch touch screen |
| Power supply | 12V/2.6Ah Li-battery |
| Detection area | Diameter 15cm |
| Data | 10,000 data can be stored in internal ROM |
| Built-in detection and calibration function | accurate results obtained under various temperature and humidity conditions. |
| Measuring time | ≤3 seconds |
| No need to do coring calibration, can test directly | |
| Interface | USB,U disc can transmit data directly or upgrade internal software |
No. | Name | Unit | Qty |
1 | Main unit for Asphalt Non-Nuclear Electrical Density Gauge(EDG) | Set | 1 |
2 | Manual book | Piece | 1 |
No. | Name | Unit | Qty |
1 | Main unit for Asphalt Non-Nuclear Electrical Density Gauge(EDG) | Set | 1 |
2 | Manual book | Piece | 1 |
