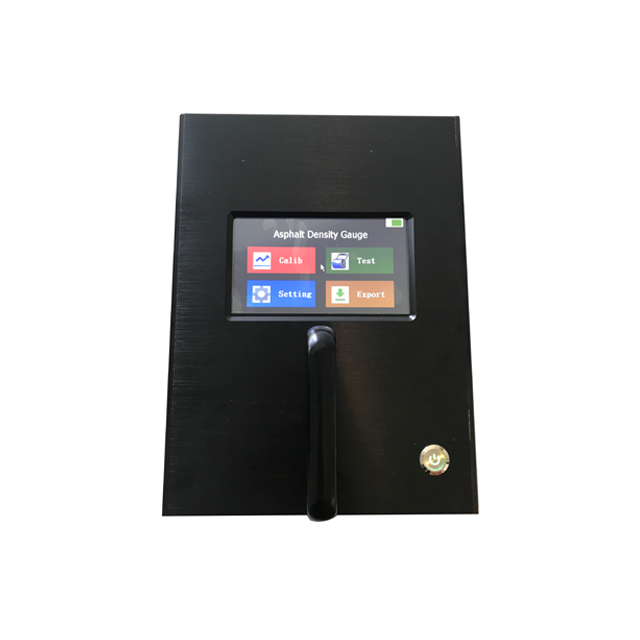

High frequency Non-Nuclear Electrical Density Gauge pavement is a portable non-destructive pavement quality indicator.It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers of pavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
High frequency Non-Nuclear Electrical Density Gauge pavement is a portable non-destructive pavement quality indicator.It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers of pavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
1.Fast and accurate material density and compaction test.
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations.
3.You can read the data accurately in three seconds.
4.Touch screen operation, light and easy operation.
5. Measuring Density in Universal Units (g./cm³ or kg/m³).
6. Higher precision and better stability.
7.Using U disc to copy the data directly
1.Fast and accurate material density and compaction test.
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations.
3.You can read the data accurately in three seconds.
4.Touch screen operation, light and easy operation.
5. Measuring Density in Universal Units (g./cm³ or kg/m³).
6. Higher precision and better stability.
7.Using U disc to copy the data directly
| Operating temp. | 0℃~70℃ |
| Measuring depth | 2mm ~12mm |
| Display content | density/compaction/porosity/temperature and humidity |
| Main unit dimension | around 230*170*60mm |
| Displayer | With 5.1inch touch screen |
| Power supply | 12V/2.6Ah Li-battery |
| Detection area | Diameter 15cm |
| Data | 10,000 data can be stored in internal ROM |
| Built-in detection and calibration function | accurate results obtained under various temperature and humidity conditions. |
| Interface | USB,U disc can transmit data directly or upgrade internal software |
| Measuring time | ≤3 seconds |
| Calibration | No need to do coring calibration, can test directly |
| Operating temp. | 0℃~70℃ |
| Measuring depth | 2mm ~12mm |
| Display content | density/compaction/porosity/temperature and humidity |
| Main unit dimension | around 230*170*60mm |
| Displayer | With 5.1inch touch screen |
| Power supply | 12V/2.6Ah Li-battery |
| Detection area | Diameter 15cm |
| Data | 10,000 data can be stored in internal ROM |
| Built-in detection and calibration function | accurate results obtained under various temperature and humidity conditions. |
| Interface | USB,U disc can transmit data directly or upgrade internal software |
| Measuring time | ≤3 seconds |
| Calibration | No need to do coring calibration, can test directly |
No. | Name | Unit | Qty |
1 | Main unit for Asphalt Non-Nuclear Electrical Density Gauge(EDG) | Set | 1 |
2 | Manual book | Piece | 1 |
No. | Name | Unit | Qty |
1 | Main unit for Asphalt Non-Nuclear Electrical Density Gauge(EDG) | Set | 1 |
2 | Manual book | Piece | 1 |
