TBTPFC-1
TBTSCIETECH
| Availability: | |
|---|---|

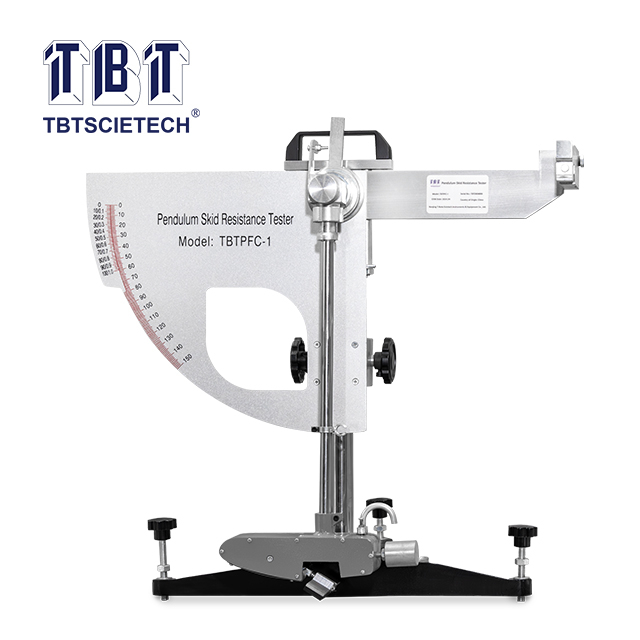

TBTPFC-1 Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface, to check the resistance of wet and dry surfaces to slipping and skidding.
It can test surface friction and skid resistance; Aggregates in PSV(Polished Stone Value) test and Road surface friction test.
It can be used both in the lab and on site, for asphalt pavement, airport runway etc.
TBTPFC-1 Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface, to check the resistance of wet and dry surfaces to slipping and skidding.
It can test surface friction and skid resistance; Aggregates in PSV(Polished Stone Value) test and Road surface friction test.
It can be used both in the lab and on site, for asphalt pavement, airport runway etc.
ASTM E303, EN1097
ASTM E303, EN1097
Pendulum | 1500±30g |
Distance between rocking centre and center of gravity | 410±5mm |
Positive static pressure on pavement | 22.2±0.5kN |

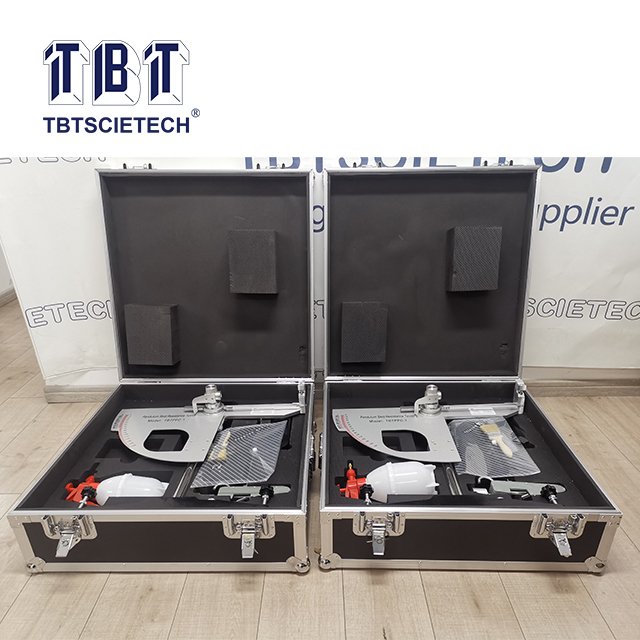

Carrying case | Alum. Case |
Distance to center | 510mm |
Net weight | Around 12KG |
Pendulum | 1500±30g |
Distance between rocking centre and center of gravity | 410±5mm |
Positive static pressure on pavement | 22.2±0.5kN |
Carrying case | Alum. Case |
Distance to center | 510mm |
Net weight | Around 12KG |
