Portable Gauge TBTTQ-1J Retroreflectometer for road marking
Features
Portable Gauge TBTTQ-1J Retroreflectometer for road marking Main Features:

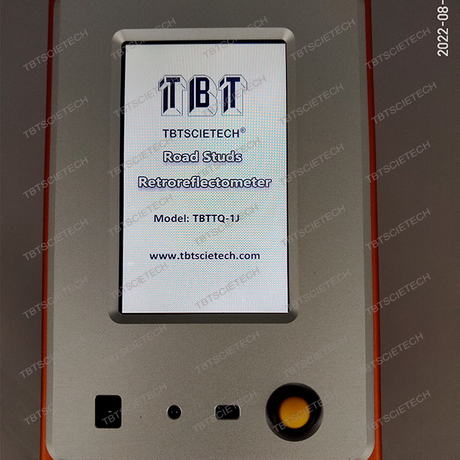

5-inch touching screen, real-time display temperature and humidity, Chinese-English switchable.
Hollow-out assistant angle board, help to accurately locate incident angle, no need to manually adjust incident & observation angle.
The incident angle automatically matches the observation angle.
With functions of parameter verification, automatic Zero setting, data storage, export, deletion, and query.
Applicable for laboratory or on-site testing.
USB data interface, test report is exported to computer in form of database.
Relative Standards:
GB/T 26377-2010
JJG059-2004
GB/T 24725-2009
Specification
Technical Specification:
Measurement items: | retroreflective coefficient ( mcd.lx-1 ) | ||||
Measurement range: | 0---2000 | ||||
Observation angle: | 0.2° | 0.33° | 1.0° | 2° | 0.2° |
Angle of incidence: | 0° | ±5° | ±10° | ±15° | ±20° |
Light source color temperature: | 2856±50K | ||||
Repeatability measurement error | 5% | ||||
Touching screen | 5" | ||||
Continuous working time of battery: | ＞30h | ||||
Data storage space: | 500 pcs | ||||
Built-in battery capacity: | 12V 5.2Ah | ||||
Charger: | DC15V | ||||
Ambient temperature: | -15℃～60℃ | ||||
Ambient humidity: | ＜98%, no frost | ||||
Instrument size: | 330mm x 220mm x 100mm | ||||
Weight | 5.5KG | ||||

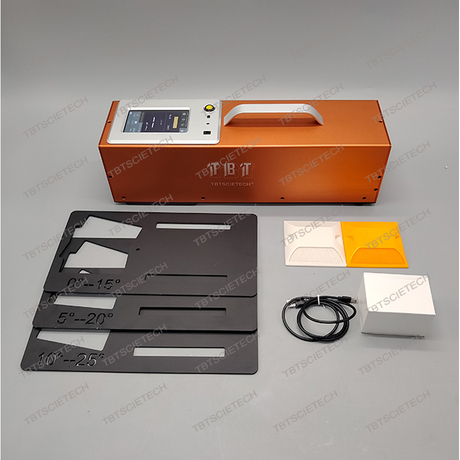

Configuration
Configuration:
Main unit ................................................................1 pc
Calibration blocks .................................................2 pcs (white, yellow each)
Incident angle board...............................................3 pcs
Charger ..................................................................1 pc
USB cable ...............................................................1 pc
Carry case ..............................................................1 pc
